Hemispherical Brass Ceiling Attachment Parts For Hanging System YW86249
Specification:
| Material | Brass | Type | Hemispherical |
| MOQ | 800 PCS | Brand Name | YW |
| Item | Ceiling Attachment | Carton Size | 35*25*18cm |

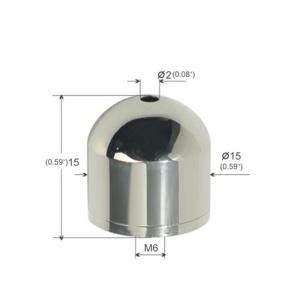

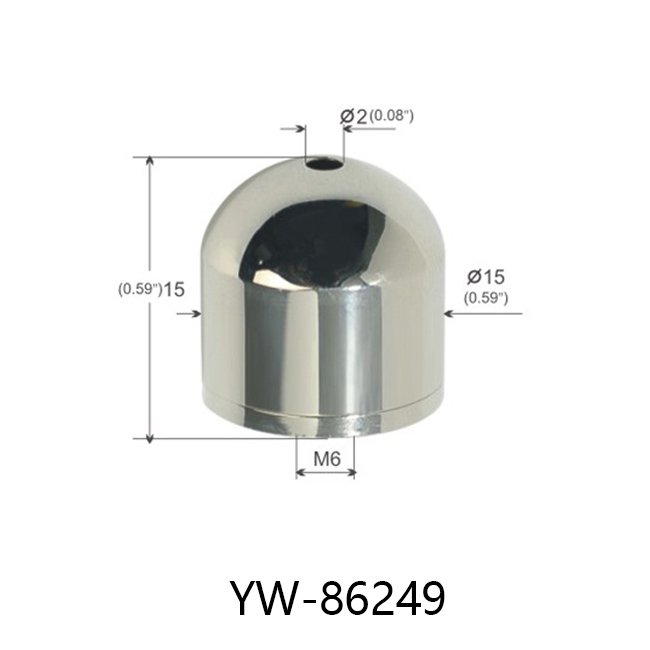

| Size | ∅15*15mm/Customized | Lead Time | 8-15 workdays |
| Thread | M6 female thread | Payment Terms | T/T, Western Union, Paypal |
Description:
This attachment provides a firm anchor for the suspension system wire to locate onto the ceiling. In the standard configuration, the attachment barrel is screwed onto the ceiling, and the suspension wire is threaded through the collar-locking nut, with the nipple at the end of the suspension wire locating into the collar, which is then screwed into the barrel.
Attachments are used to fix the cables to ceilings, walls, or floors.
The ceiling attachment is a two-piece connector for use with a cable hanging system. It is fixed to the ceiling, works with a cable gripper, and offers the perfect solution for the suspension system.
One part of the suspension systems, used for applications where you have a high ceiling, curved or slope ceiling, or difficult installation.
Low cost and competitively priced for use in industrial and architectural lighting applications.
Application:
* The dome-shaped ceiling attachment coupler provides the perfect solution for hanging objects from a single stationary location.
* The Ceiling Attachment kit can be used to hang signs, banners and display items.
* Once installed objects can easily be adjusted vertically using cable hooks, gripper hooks, and side clamps.
* In addition to signs and banners, the ceiling-attachment set is ideal for hanging art, chandeliers, collectibles, cookware, panels, planters, and partitions.
How To Installation:
1: Insert the cable into Gripper hooks.
2: Pass cable through or around the anchor point.
3: Insert cable back into Looping Gripper.
ADJUSTMENT: Remove load from cable, depress plunger & adjust cable height.
Note: Gripper hook must maintain a minimum 500 distance from all suspended objects or support structures.
The finest way to suspend lighting fixtures available
1.Contains 2 parts cable coupler with M6 thread, be fixed to the ceiling by screw, non-adjustable;
2.Many Ceiling Attachment styles allow you to attach anything you want to hang, working with different cable gripper styles allows for limitless hanging installation options.
3.Made of Brass material with plated, rustless;
4.Compact design, easy taking, and delivery.
